275nm UVC LED Lamp Bacteria Disinfection Sterilizer DC5V 5mW Ultra Violet Light Strip

Name: 275nm UVC LED Lamp Bacteria Disinfection Sterilizer DC5V 5mW Ultra Violet Light Strip
Brand: DELI
Price: 1 USD

Wholesale 275nm UVC LED Lamp Bacteria Disinfection Sterilizer DC5V 5mW Ultra Violet Light Strip from china suppliers

Brand Name : DELI

Model Number : DLBD-UVC275-5

Place of Origin : CN

MOQ : 1

Price : negotiaon

Payment Terms : T/T, Western Union, paypal

Supply Ability : 10000

Delivery Time : 3-5days

Packaging Details : normal safe packaged

Power : 2-5mW

Voltage : DC5V

Wavelength : 275nm

Base Type : Mini jst socket

Weight : 25g

Lifespan : >10,000H

UVC LED : 1 uvc led

Size : 25*1*0.2cm

Contact Now

5mW DUV UVC Light Fixtures DC 5V Ultra Violet Light Strip 275nm Bacteria Sterilizer

Application: Medical sterilization / home disinfection / outdoor disinfection,

Industrial disinfection

Features:

1. High performance: Kill 99.99% of harmful bacteria with UV light in seconds.

2. DIY Water Sanitizer solution: Clean water by installing a UVC LED module.

3. Environmental friendly: Chemical-free ultroviolet lighting source.

4. Long serving life: Nearly 10000 hours of working life.

5. Instant start.

Parameters:

Power: 5mW

Voltage: DC5V

Weight: 25g

Size: 25*1*0.2cm

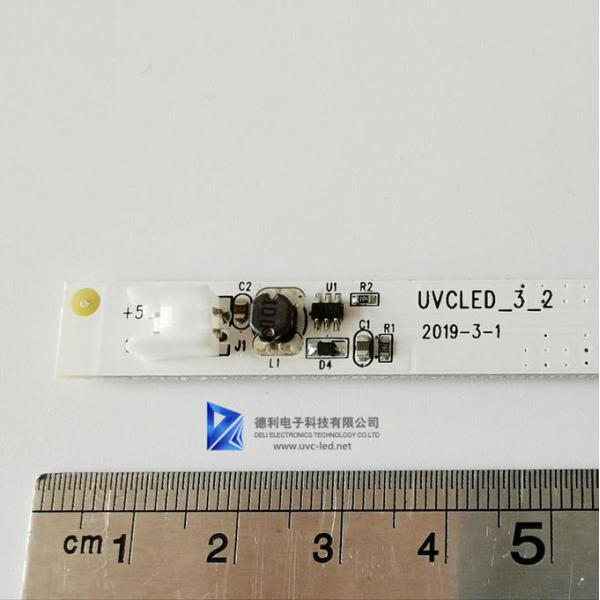

Part one:

PCB Board Size Map(mm)

Material of the PCB board is double-sided glass fiber.

The outline dimension is 250mm*10mm, the depth of the PCB board is 1.6mm,

IC and Resistor on the back (depth:2mm) and UVC LED (1.6mm) on the front.

The overall depth is around 4.3mm.

Part two:

Technical Requirement

It has violet LEDs and 1 UVC LEDs on the PCB board.

A. Table of the parameters of the 2 blue LEDs

Item	Symbol	Condition	Min.	Ave.	Max.	Unit
Forward Voltage	VF	IF=30mA	3.2		3.6	V
Reverse Current	IR	VR=5V	--		10	μA
Light Angle	2θ½	IF=30mA	--	120	--	deg
Luminous Flux	φV	IF=30mA	40		80	mw
Working Current	IF	--	--	30	--	mA
Peak Wavelength	λP	IF=30mA	395	--	400	nm
Junction Temperature	Tj	IF=30mA	--	125	--	℃
Thermal Resistance	RJP	IF=30mA	--	8	--	℃/W

B. Table of the parameters of 1 UVC LED

Item	Symbol	Condition	Min.	Ave.	Max.	Unit
Forward Voltage	VF	IF=40mA	5	6.5	8	V
Light Angle	2θ½	IF=40mA	--	120	--	deg
P-out	P	IF=40mA	2	3.5	5	mW
Half-Wave Width	Δλ	IF=40mA	8	10	12	nm
Peak Wavelength	λP	IF=40mA	270	275	285	nm
ESD	H.B.M	--	4000	-	-	V

Part three: Description of Wire

Length: 500mm; 24AWG; Red: Anode; Black: Cathode;

Terminal: 2 pin mini jst socket

Part four: Power Supply DC5V

275nm UVC LED Lamp Bacteria Disinfection Sterilizer DC5V 5mW Ultra Violet Light Strip

Deli electronics tehcnology co ltd
www.icmemorychip.com
www.uvc-led.net
Email:sales3@deli-ic.com
Skype:hkdeli881
Contact: VIVI-CHEN
